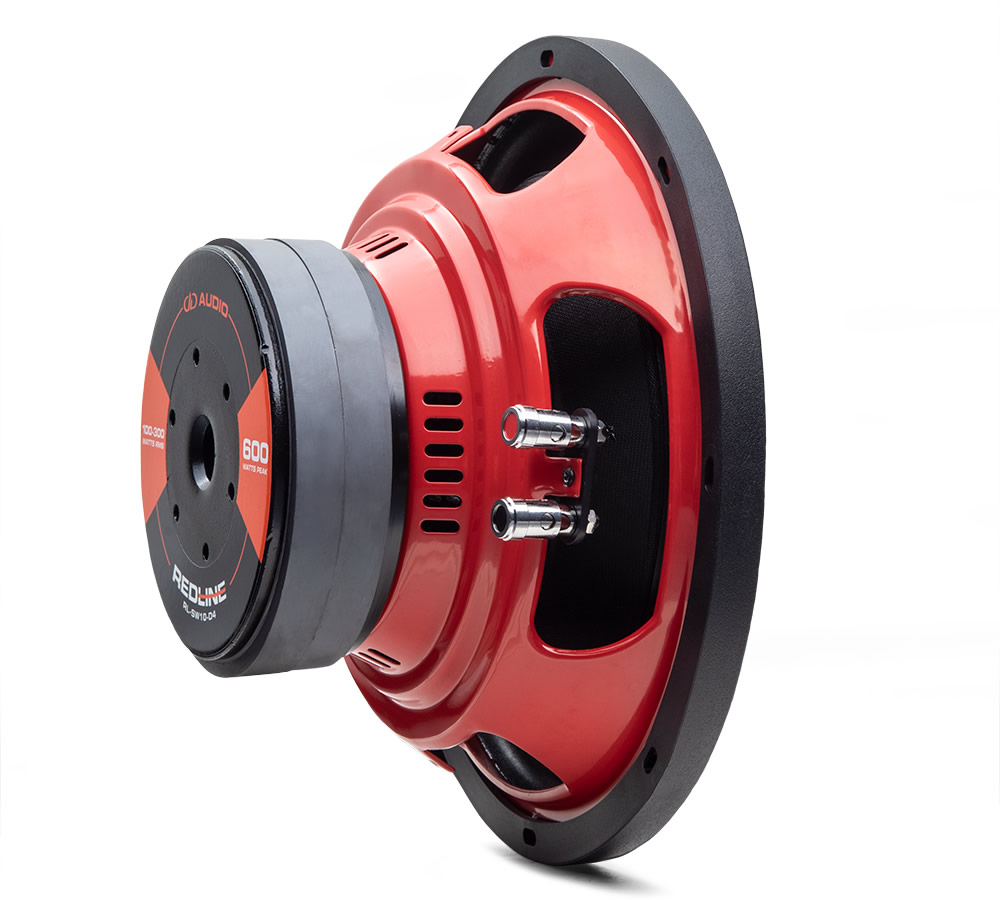

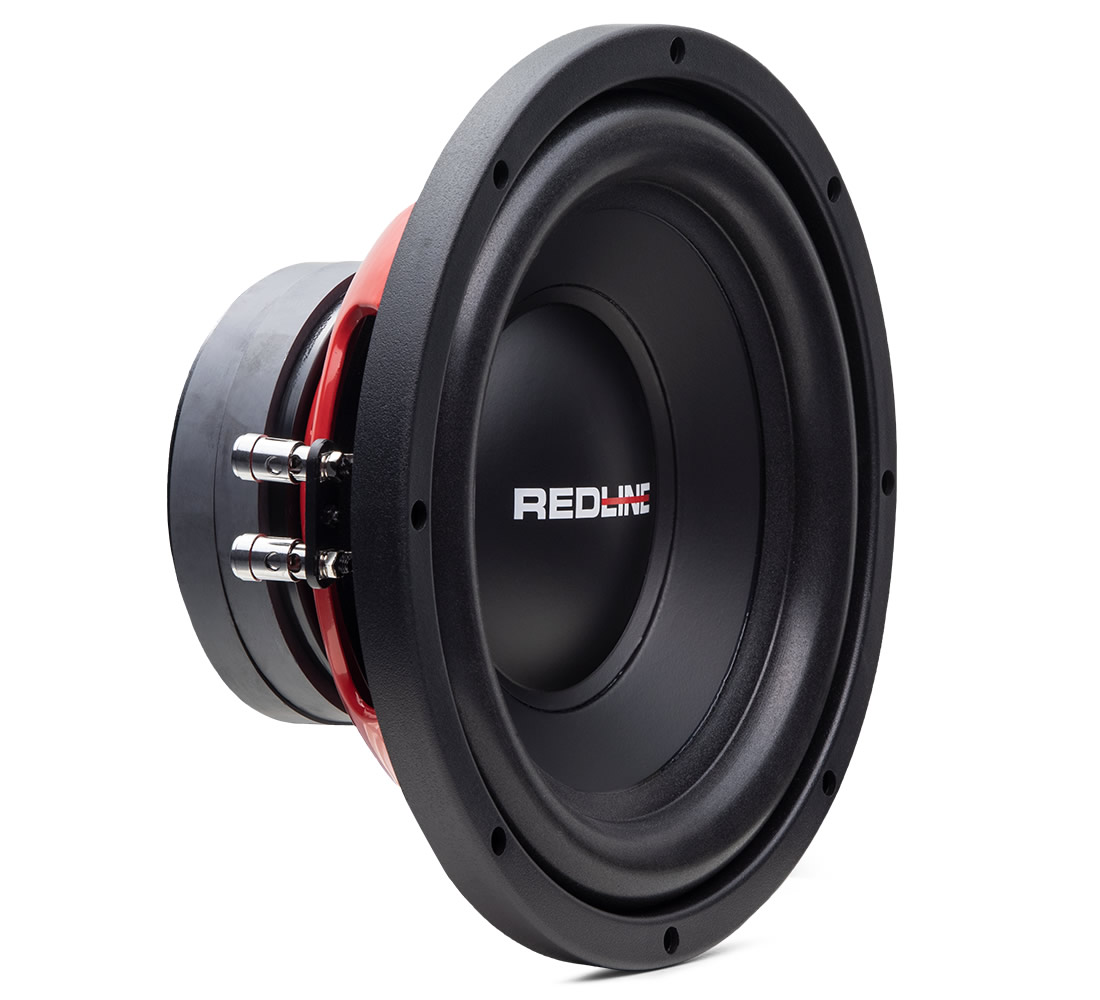

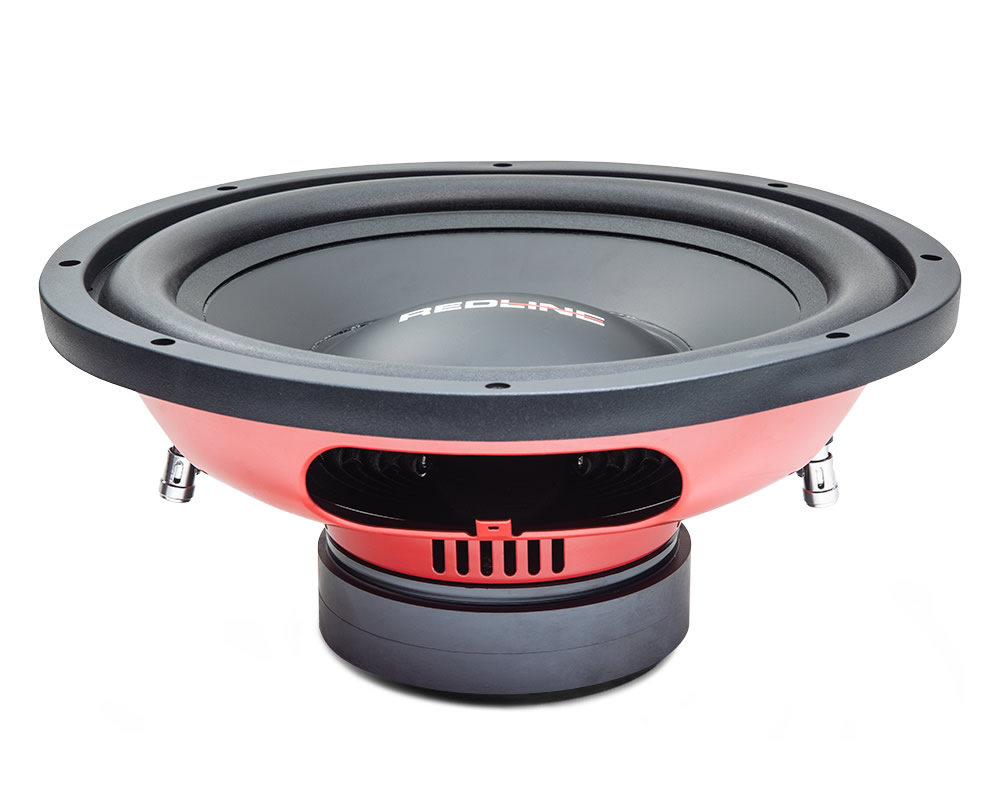

DD Audio RL-SW10 D2

 DD Audio RL-SW10 D2

Още снимки

Характеристики

The REDLINE SW Series subwoofers offer extreme bass and value. These Hi Def Tuned subwoofers work great in sealed and small vented enclosures, on low to moderate power levels. They’re equipped with all the performance features needed to handle the rigors of daily pounding, and they are available in two impedance options so they can be matched to any DD Audio amplifier. High Temp 2” Voice Coil DVC 2 Ohm, DVC 4 Ohm EROM Surround Vented Stamped Steel Frame Vented Backplate Push Terminals


Woofer size:  10'' (25cm)
Power handling: 300W RMS
Sensitivity: 86dB ( 1W / 1m )
Impedance: 2 x 2 ohm
Magnet size:  55 oz

T/C parameters
Fs : 35Hz
Vas:  32,4 L
Xmax: 8 mm
Qms: 11,1
Qes: 0.53
Qts: 0,50
Sd: ---cm²
BL: --- T/m
Z: 4 ohms
Mms: --- gr
Re: --- ohms
