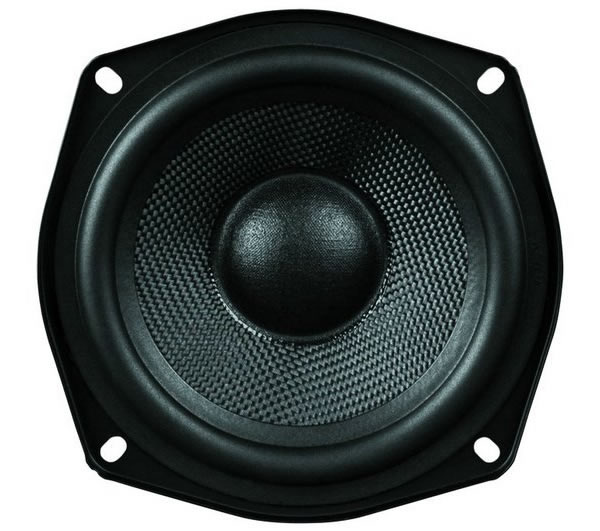

Hi-Vi Research L5-8R

Hi-Vi Research L5-8R

Още снимки

Характеристики

 Nominal Impedance (Z)(Ω) : 8
 Resonance Frequency (Fs)(Hz) : 60
 Nominal Power Handling (Pnom)(W) : 30
 Max Power Handling(Pmax)(W) : 60
 Sensitivity (2.83v/1m)(dB) : 85
 Weight (M)(Kg) : 1.25
 VC Diameter (mm) : 25
 DC (Re)(Ω) : 6.5
 VC Length (H)(mm) : 12.3
 VC Former : SV
 VC Frame : Kapton
 Magnet System : Shielded
 Magnet Former : Ferrite
 Force Factor (BL)(N/A) : 5
 Gap Height (He)(mm) : 5
 Linear Excursion (Xmax)(mm) : 3.65
 Suspension Compliance (Cms)(uM/N) : 800
 Mechanical Q (Qms) : 3.07
 Electrical Q (Qes) : 0.42
 Total Q (Qts) : 0.37
 Moving Mass (Mms)(g) : 17.3
 Effective Piston Area (Sd)(m2) : 0.008
 Equivalent Air Volume (Vas)(L) : 7
